Name: PDLC Smart Glass (PRIVASEE® SG-01 / LG-AC)
Brand: PRIVASEE®

01 · The technology

Smart Film, laminated.

Smart Glass is what happens when PRIVASEE® Smart Film passes through our UAE lamination line. The active PDLC film (FM-T91 in its non-adhesive grade) is encapsulated between two architectural glass panes with EVA interlayers on both faces, then vacuum-laminated and cured to a single sealed unit. Switching physics is identical to Smart Film — see the Smart Film page for the off/on/cycle science. What changes here is the package and what it protects.

Input · Smart Film -N grade

Release-liner film, ready for the line

The active layer is PRIVASEE Smart Film in its non-adhesive grade — the same FM-T91 PDLC science used in the retrofit film, supplied with a release liner instead of a pressure-sensitive adhesive. Liner peeled at the start of the lamination line.

Process · EVA lamination + cure

Per-glass vacuum · controlled cure

The film is sandwiched between two glass panes with EVA interlayers on both faces. A per-glass vacuum bag pulls air out, and a controlled multi-stage thermal cycle bonds the EVA. Dew point monitored throughout. Per BS EN 14449.

Result · architectural unit

Active film inside · protected

The PDLC active film is now hermetically encapsulated between two glass panes, shielded by EVA on both faces and protected at the edge by the laminated build-up. No surface exposure. No edge-seal vulnerability. The active layer is sealed for the service life of the unit.

02 · Lamination process + QC

How the unit gets built.

Every PRIVASEE® Smart Glass unit is laminated in our UAE factory line. The process below is the five-step flow each unit travels, with the quality-control checkpoints applied at each step. The exact cure recipe — temperatures, dwell times, EVA grade — is confidential to PRIVASEE; what we publish here is the process you'd see if you walked through the line.

Quality control · what we check

DP
Dew-point monitoring Tracked through the vacuum and cure cycles to prevent moisture trapping at the active film face.
VAC
Vacuum integrity Pump-down verified per panel — no leak path between the stack and the bag before cure starts.
OPT
Optical clarity Powered-on transmission and powered-off haze inspected against the FM-T91 reference per EN 410 · ISO 9050.
EDG
Edge inspection No delamination, no bubble inclusion, no chipping. Edge sealant compatibility verified.
DB
Drop-ball / impact Safety-rated units (LG-01) tested per BS EN 12600 to confirm Class 1B or higher classification.
AG
Accelerated aging Sample programme per BS EN 14449 to validate long-term bond integrity and optical stability.

Why glass beats film on the long run

Sealed inside glass · not stuck on glass.

Smart Film sits on the room-side face of existing glass — its top PET hard-coat takes every clean, every touch, every bit of UV. Smart Glass takes the same active film and seals it between two glass panes with EVA. No surface exposure. No edge-seal vulnerability. Service life follows accordingly, and our standard warranty reflects that.

Smart Film warranty 24 months Standard manufacturer warranty. Surface-exposed PSA bond.

Smart Glass warranty 2 years standard Extendable by separate project agreement. Hermetically sealed unit.

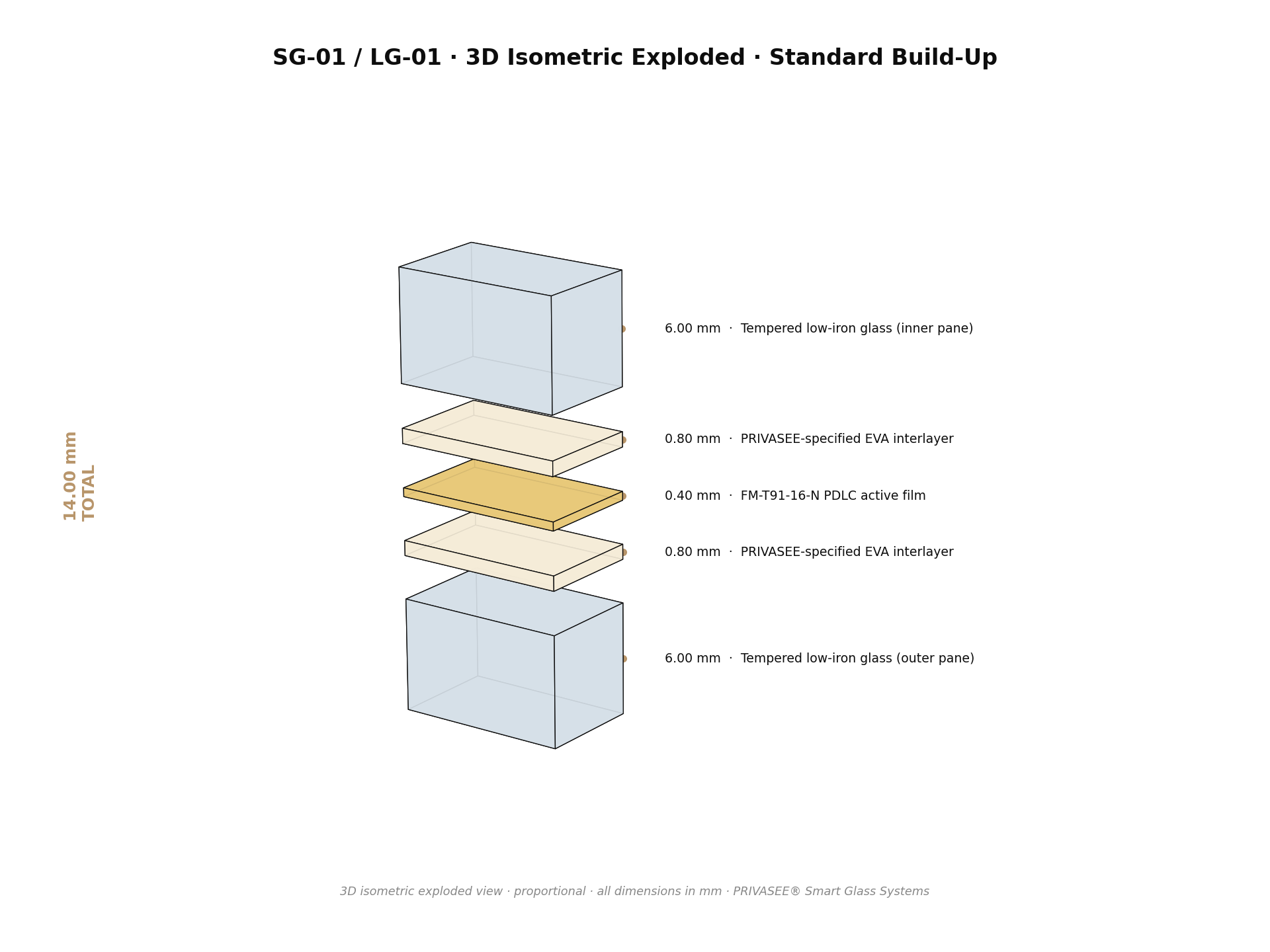

03 · Build-up anatomy

The SG-01 reference build.

The standard PRIVASEE® Smart Glass assembly is a five-layer architectural unit on low-iron substrate, EVA-laminated and edge-sealed. Layer thicknesses follow the locked reference build. Custom thicknesses and substrate combinations are available through Custom Configurations.

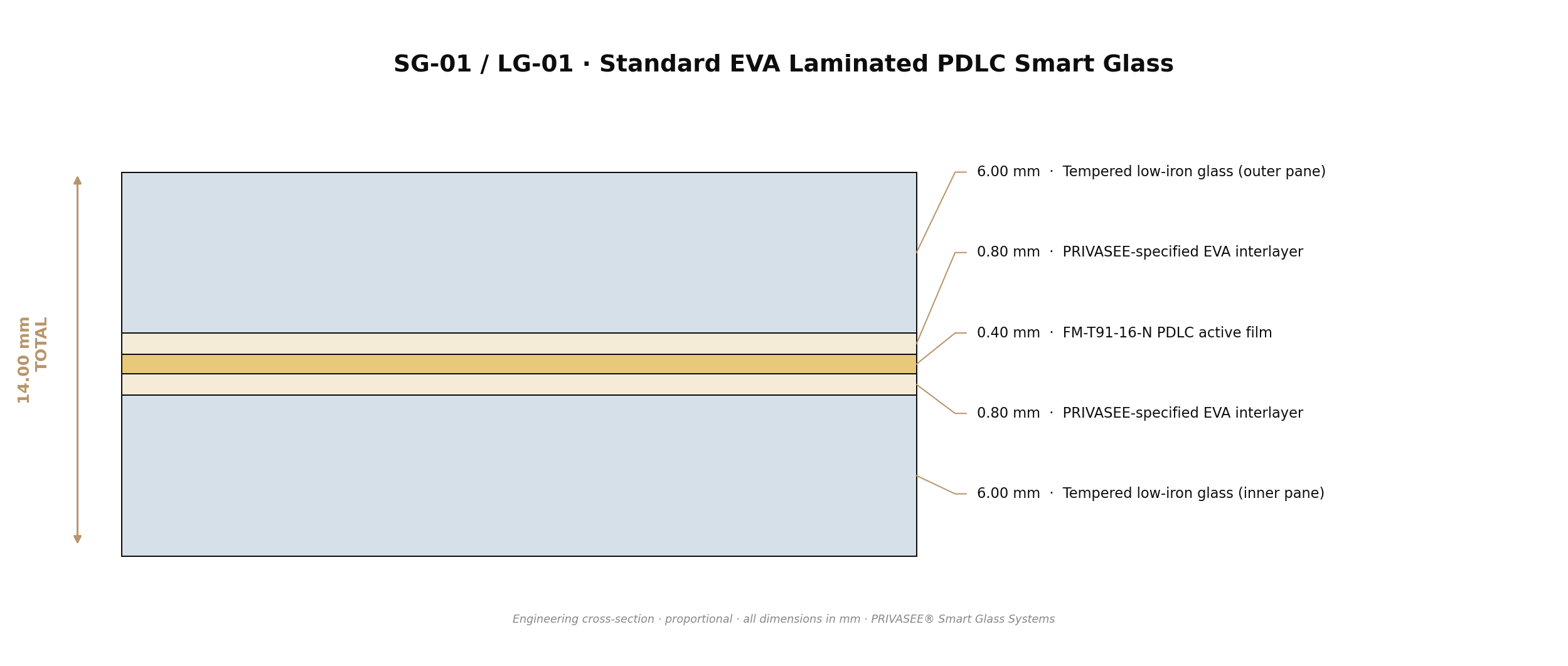

PRIVASEE® SG-01 build-up · layer-by-layer cross-section · 6 + 0.8 + 0.4 + 0.8 + 6 mm

6.0 mm
Outer glass · Low-ironToughened or heat-strengthened option. Low-iron substrate for high optical clarity.
0.8 mm
EVA interlayerPRIVASEE-specified EVA grade for PDLC. Vacuum-laminated to the active film.
0.4 mm
PDLC active filmThe switchable privacy layer — opaque off, clear on. The same active film used in PRIVASEE® Smart Film.
0.8 mm
EVA interlayerSymmetrical bond layer. Per-glass vacuum bagging during lamination.
6.0 mm
Inner glass · Low-ironSame substrate spec as outer. Toughened available for safety class up-rate.

Total assembly: 14.0 mm nominal · 13.82 mm factory measured Tolerances under ISO 12543-5. EVA cure compression is real and measured per project. Custom thickness (6+6, 8+8, 10+10) available.

04 · The range

Four engineered outcomes.

The PRIVASEE® Smart Glass family covers four engineered build paths. SG-01 is the reference unit for standard architectural privacy. LG-01 adds safety-rated impact performance. LG-AC adds acoustic performance. Custom Configurations covers everything else — colour, print, DGU, skylight, logo cut, curved, asymmetric, jumbo. Pick by use case and audience.

SG-01 · Standard

The reference build.

The default architectural privacy build. 14 mm nominal assembly on low-iron glass. The unit specified on most PRIVASEE® projects.

UAE ex-stock · 24-mo warranty Datasheet →

LG-01 · Safety Laminated

Impact-rated assembly.

Same EVA-laminated PDLC architecture, engineered to safety classification BS EN 12600 Class 1B or higher. For wherever an impact rating is specified.

Build to order · 24-mo warranty Datasheet →

LG-AC · Acoustic

For sound-sensitive interiors.

Same assembly architecture with acoustic-grade EVA tuned to the project's acoustic target. Independent test report supplied per project.

Build to order · Lead time per project Datasheet →

Custom · Configurations

When the brief gets specific.

Coloured substrate, printed graphic, DGU façade, skylight, logo cut, curved or bent, asymmetric, jumbo with multi-busbar. Eight engineered build paths.

Tender review · Engineering response Catalogue →

Download centre All Smart Glass datasheets, manuals, warranties, and specifications live in one place.

Open the Technical Library →

05 · Configuration options

The architect's option set.

The reference build is the start, not the end. Glass thickness, substrate finish, integration with insulating glass units, sloped glazing, asymmetric panels, and oversize jumbo with multi-busbar configurations are all engineered project-by-project at PRIVASEE®.

Glass thickness

Thickness options

6 + 6 mm · standard reference
8 + 8 mm · impact / safety up-rate
10 + 10 mm · large-format façade

Heat-strengthened or toughened on request.

Substrate finish

Finish + tint

Clear · low-iron · reference finish
Grey · dark grey · black · solar control tint
Custom coloured · project-specific

Tint applied to outer or inner pane to specification.

Printed graphic

Printed PDLC

Ceramic frit or back-printed pattern on the outer pane. Logo cuts, decorative bands, gradient masks — printed before lamination so the print is sealed inside the glass.

Print artwork confirmed at tender stage.

DGU integration

Insulating glass unit

Smart Glass integrated as the inner leaf of a DGU façade. Argon-filled cavity, low-e coating on the air-side surface, full thermal performance maintained while privacy switching is preserved.

Façade engineering review per project.

Overhead glazing

Skylight + sloped

Heat-soaked + heat-strengthened laminated build for skylights, overhead glazing, and sloped roof glazing. Edge sealing detail engineered for the slope angle.

Slope angle and shading factor specified.

Curved + bent

Curved Smart Glass

Both panes pre-bent to matched radius before lamination. Project-specific curvature for feature walls, partitions, balustrades, and architectural curves. Minimum 400 mm radius.

Curvature drawing and radius confirmed per project.

Jumbo + multi-busbar

Large-format jumbo

Oversize panels engineered with multi-busbar configurations to maintain uniform switching across large surfaces. Paired with DZ6L multi-channel drives for zoned control.

Engineering envelope confirmed per project.

Cross-section visual reference

Engineered build paths · proportional cross-sections.

Six custom build configurations — each engineered cross-section drawn proportionally, all dimensions in mm. The full catalogue with 3D exploded XYZ views and architect specification language is available on download.

Coloured · bronze tint

Tinted outer pane (bronze · grey · dark grey · black) + PDLC active layer. Solar-control finish.

Printed · ceramic frit

Kiln-fired ceramic frit print on outer surface. Permanent, weather-resistant pattern sealed in the glass structure.

Printed · digital UV

UV-cured digital print on outer surface. Full-colour photographic-grade graphics, decorative bands, gradient masks.

Logo cut + custom shape

Custom-shape panel with cut-out region for logo, door handle, vent. Edge-polished. Busbar routed inside the cut perimeter.

Curved · bent

Both panes pre-bent to matched radius before lamination. Minimum 400 mm radius — project-specific curvature confirmed via engineering drawing.

Jumbo + multi-busbar

Oversize panels with multi-zone busbar splitting for uniform switching across large surfaces. Pairs with DZ6L for zoned control.

Full catalogue includes 3D exploded XYZ views, architect specification language, and project-fit guidance.

Download Custom Configurations Catalogue →

06 · Standards & compliance

Manufactured under international standards.

PRIVASEE® Smart Glass is engineered and laminated under the European laminated-glass standard set. The full technical file — Declaration of Conformity references, materials traceability, independent test reports — is released under qualified tender review.

BS EN 14449 Laminated glass · evaluation of conformity

Product standard for laminated and laminated safety glass placed on the EU and UK market.

BS EN 12150 Thermally toughened safety glass

Applied to toughened substrate options on safety-rated and impact-rated builds.

BS EN ISO 12543 Laminated glass · definitions + tolerances

Definitions, requirements, test methods, tolerances, and edge-quality referenced for the assembly.

BS EN ISO 717-1 Acoustic rating · airborne sound

Applied to LG-AC acoustic builds. Rating per project with independent laboratory test report.

BS 6206 / EN 12600 Impact + safety classification

For builds requiring safety class 1B or higher per specification.

UKCA / CE marking Construction product conformity

Required marking applied where the laminated build falls within scope on the UK and EU markets.

Tender + compliance file — PRIVASEE® supplies controlled compliance information per project for architects, consultants, certifying authorities, and contractors. Open the CE / UKCA Compliance page →

07 · Power Drive pairing

Match the drive to the project.

Every PRIVASEE® Smart Glass installation is paired with one of six Power Drive families. The drive is selected per project based on the panel count, the control logic, and the integration scenario. Configuration and output voltage are matched at the factory.

Project scenario	Drive	Why
Single panel partition · standard architectural privacy	PJ-D	The standard drive. Wired wall switch + 433 MHz RF remote. The default for most projects.
Variable opacity · scene control · graduated privacy	DZD-NO	Stepping dimmer drive. Pairs with DZ6L for whole-room scenes.
Multi-zone office · jumbo · BMS integration	DZ6L	Six independent control channels. Pairs with multi-busbar jumbo configurations.
Compact installation · single-panel · enclosure fit	PJ-C	Compact form factor for tight electrical enclosures.
Lobby · corridor · automated bathroom · motion-triggered	LD-A	24 GHz radar sensor module. Presence-aware switching paired with PJ-D.
Yacht · luxury vehicle · marine · 12–24 V DC input	CZ	DC-input adapter for onboard installations.

PRIVASEE® Power Drives are universal — they pair with PRIVASEE® Smart Glass, Smart Film, and third-party PDLC. Output voltage matched at factory specification. Open the Power Drive family →

08 · Approved materials + warranty

Warranty-critical materials.

The PRIVASEE® warranty is conditional on the approved materials being used during install and after-care. Any deviation may affect cover. Materials are listed in the warranty document (QUA-01b) and the maintenance guide (TEC-11b).

Approved sealant

TOSSEAL 381

The only PRIVASEE-approved structural silicone for laminated Smart Glass edge sealing. Other silicones void the warranty. Cartridge, pail, and drum formats available.

Approved cleaner

Isopropyl Alcohol 70%

The only PRIVASEE-approved cleaner. Apply to a lint-free microfibre cloth — never spray directly on the panel surface. Solvents, acids, alkalines, and abrasives are banned.

Panel warranty

2-year standard · extendable

PRIVASEE® Smart Glass carries a 2-year standard manufacturer warranty from invoice date, covering manufacturing defects under normal installed conditions. Extended cover is available by separate project agreement on a per-project basis. Regional variants (GCC + EU) supplied with order.

Maintenance

Daily care + after-care

Cleaning, edge inspection, after-care, and warranty-care steps are covered in the dedicated maintenance guide. Project handover includes a printed copy and a digital download link.

09 · Resources

Two tracks. One project.

Architects and engineers consume PRIVASEE® documentation differently. Architects need the spec sheet, CAD details, samples, and project examples. Engineers need wiring overviews, Power Drive selection, and BMS integration logic. Two tracks below.

For architects

Specify with confidence.

Drop-in spec line, CAD details, finish samples, and project examples. PRIVASEE® supplies architects with the documentation needed for tender, BOQ, and project specification.

SPEC-01 Architect Spec Sheet→ Smart Glass Master Catalogue→ Custom Configurations catalogue→ Request a physical sample→

For engineers

Wire it · integrate it · commission it.

Power Drive selection, wiring overview, BMS integration patterns, and home-automation interface schematics. The engineering documentation set for installers and consultants.

Power Drive selection guide→ HA + BMS integration annex→ Installation method statement→ CE / UKCA compliance file→

10 · Lead time + supply

From our factory to your project.

PRIVASEE® Smart Glass is manufactured at our UAE factory. Stock and lead time depend on the build (SG-01 stocked, LG-01 / LG-AC / Custom built per order) and the destination market. Quote response within two working days for every market.

UAE warehouse Ex-stock SG-01 Standard SG-01 reference build is stocked at the UAE warehouse. Same-day pick-up for trade partners.

UK distribution Launching soon UK distribution warehouse launching soon. Direct-to-project shipping available now via the UAE factory.

International Project shipping GCC, Europe, and international destinations served direct from the UAE factory with full export documentation.

EVA Laminated Smart Glass — engineered in our factory.
